#include <RehtiGraphics.hpp>

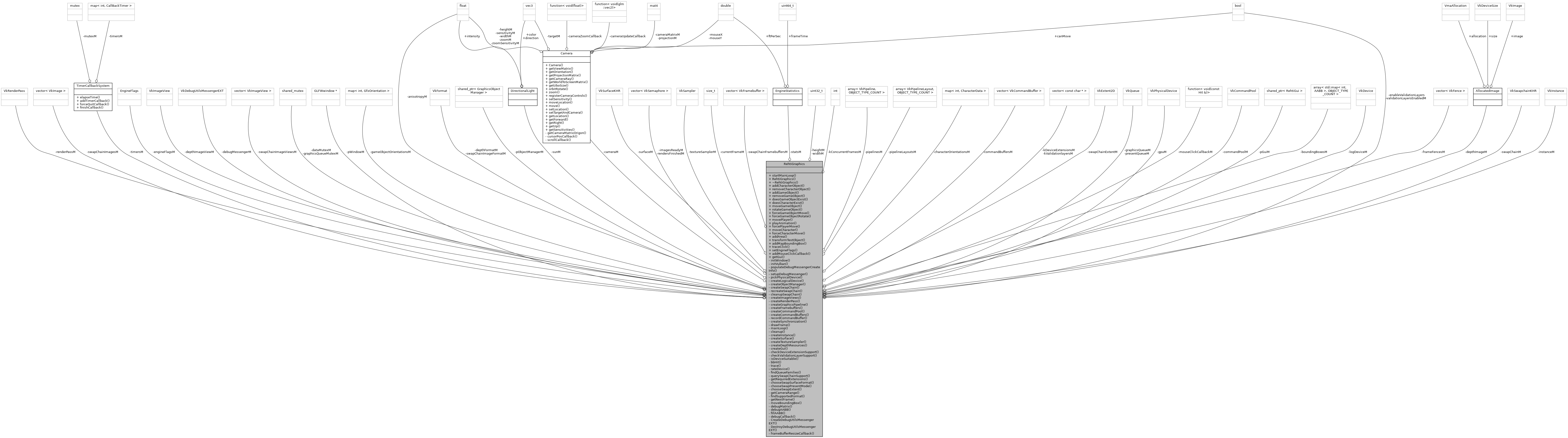

Collaboration diagram for RehtiGraphics:

Public Member Functions
void	startMainLoop ()
	Starts a rendering loop until the window is closed. More...

	RehtiGraphics (uint32_t width=1200, uint32_t height=900, glm::vec3 cameraLocation=glm::vec3(0.f))
	Initializes the graphics backend. More...

	~RehtiGraphics ()
	Cleans up all the resources used by vulkan. More...

bool	addCharacterObject (int characterID, std::vector< CharacterVertex > vertices, std::vector< uint32_t > indices, ImageData texture, std::array< Animation, ANIMATION_TYPE_COUNT > animations, std::vector< BoneNode > bones, std::vector< glm::mat4 > transformations, glm::vec3 location=glm::vec3(0.f), float rotation=0.f, bool isPlayer=false)
	Adds a character object with the given id to the graphics backend. Also creates a bounding box for the object. More...

bool	removeCharacterObject (int characterID)
	Removes a character object with the given id from the graphics backend. More...

bool	addGameObject (int objectID, std::vector< Vertex > vertices, std::vector< uint32_t > indices, ImageData texture, glm::vec3 location=glm::vec3(0.f), float rotation=0.f)
	Adds a game object with the given id to the graphics backend. Also creates a bounding box for the object. More...

bool	removeGameObject (int objectID)
	Removes a game object with the given id from the graphics backend. More...

bool	doesGameObjectExist (int objectID)
	Checks if a game object with the given id exists. More...

bool	doesCharacterExist (int characterID)
	Checks if a characterwith the given id exists. More...

void	moveGameObject (int objectID, glm::vec3 location, float timeInSeconds)
	Moves a game object to the given location in the given time. More...

void	rotateGameObject (int objectID, float radians, float timeInSeconds)
	Rotates a game object by given radian angle in the given time frame. More...

void	forceGameObjectMove (int objectID, glm::vec3 location)
	Forces the game object to move to the given location, quitting any remaining movement callbacks. More...

void	forceGameObjectRotate (int objectID, float radians)
	Forces game object rotation to the given angle, quitting any remaining rotation callbacks. More...

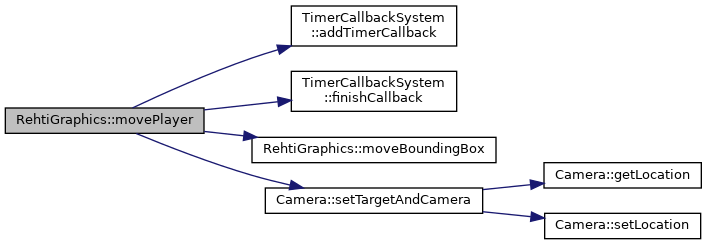

void	movePlayer (int playerID, glm::vec3 location, float timeInSeconds)
	Moves the player smoothly (without animation) to the given location in the given time. More...

void	playAnimation (int characterID, AnimationConfig cfg)
	Plays an animation for the given character. More...

void	forcePlayerMove (int playerID, glm::vec3 location)
	Forces player to move to the location given, cancelling any remaining movement callbacks and animations. More...

void	moveCharacter (int characterID, glm::vec3 location, float timeInSeconds)
	Moves character smoothly (without animation) to the given location in the given time. More...

void	forceCharacterMove (int characterID, glm::vec3 location)
	Forces character to the given location, cancelling any remaining movement callbacks and animations. More...

bool	addArea (std::vector< Vertex > vertices, std::vector< uint32_t > indices, std::array< ImageData, 6 > textures)
	Adds an area to the game. More...

void	transformTestObject (int id, glm::mat4 transformation)
	Transforms object with the given id. More...

void	addMapBoundingBox (const MapAABBData &mapAABBData)
	Adds a bounding box for the world map. More...

Hit	traceClick ()
	Traces a ray against all bounding boxes, starting with objects, then characters and lastly the map. More...

void	setEngineFlags (EngineFlags flags)
	Sets flags for engine. Flags can only be set by this interface, not unset. More...

void	addMouseClickCallback (std::function< void(const Hit &)> callback)
	Adds a mouse click callback. More...

std::shared_ptr< RehtiGui >	getGui ()

Private Member Functions
void	initWindow ()
	Initializes the window. More...

void	initVulkan ()
	Initializes vulkan instance. More...

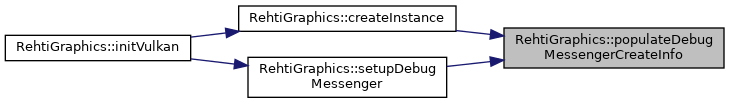

void	populateDebugMessengerCreateInfo (VkDebugUtilsMessengerCreateInfoEXT &createInfo)
	Populates the debug messenger info. More...

void	setupDebugMessenger ()
	Setups the debug messenger. More...

void	pickPhysicalDevice ()
	Chooses an appropriate gpu. More...

void	createLogicalDevice ()
	Creates the interactable logical device. More...

void	createObjectManager ()
	Creates the graphics object manager. More...

void	createSwapChain ()
	Creates the swapchain. More...

void	recreateSwapChain ()
	Recreates the swapchain. More...

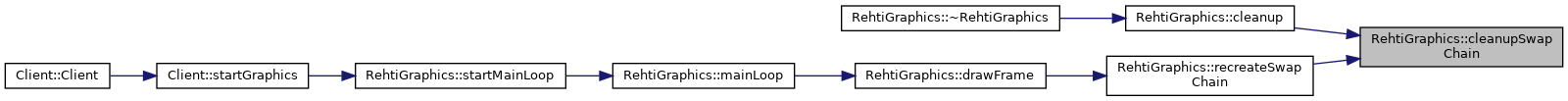

void	cleanupSwapChain ()
	Cleans up swapchain related resources. This function is used for easier recreation of the swap chain. More...

void	createImageViews ()
	Creates the image views. More...

void	createRenderPass ()
	Creates the render pass. More...

void	createGraphicsPipeline ()
	Creates the graphics pipeline. More...

void	createFramebuffers ()
	Creates the framebuffers. More...

void	createCommandPool ()
	Creates the command pool. More...

void	createCommandBuffers ()
	Creates the command buffers. More...

void	recordCommandBuffer (VkCommandBuffer cmdBuffer, uint32_t imageIndex)
	Records the command buffer. More...

void	createSynchronization ()
	Initializes the appropriate semaphores and fences. More...

void	drawFrame ()
	Draws a frame and records the previous frame time. More...

void	mainLoop ()
	Loops, polls events and draws frames. More...

void	cleanup ()
	Cleans up used resources. More...

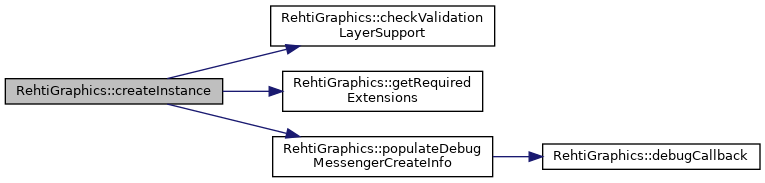

void	createInstance ()
	Creates vulkan instance. More...

void	createSurface ()
	Creates a surface to draw on. More...

void	createTextureSampler ()
	Creates a texture sampler. More...

void	createDepthResources ()
	Creates resources required for a depth buffer. More...

void	createGui ()
	Creates RehtiGui member and initializes it. More...

bool	checkDeviceExtensionSupport (VkPhysicalDevice device)
	Checks whether the given device supports the required extensions. More...

bool	checkValidationLayerSupport ()
	Checks whether the given device supports the required layers. More...

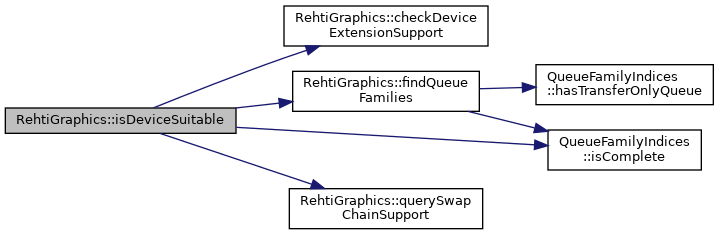

bool	isDeviceSuitable (VkPhysicalDevice device)
	Checks whether the given device supports the required features. More...

bool	bbHit (const glm::vec3 min, const glm::vec3 max, const glm::vec3 rayOrig, const glm::vec3 dirInv, float &t)
	Checks whether the given bounding box is hit by the given ray. More...

bool	trace (const glm::vec3 orig, const glm::vec3 dirInv, const AABB *pBoxNode, AABB &boxHit, float &t)
	Traces a given ray against a given bounding box. More...

int	rateDevice (VkPhysicalDevice device)
	Rates the given gpu. More...

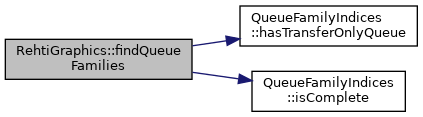

QueueFamilyIndices	findQueueFamilies (VkPhysicalDevice device)
	Looks for queue families. More...

SwapChainSupportDetails	querySwapChainSupport (VkPhysicalDevice device)
	Looks for swapchain support. More...

std::vector< const char * >	getRequiredExtensions ()
	Returns the required extensions as c strings. More...

VkSurfaceFormatKHR	chooseSwapSurfaceFormat (const std::vector< VkSurfaceFormatKHR > availableFormats)
	Chooses a surface format. More...

VkPresentModeKHR	chooseSwapPresentMode (const std::vector< VkPresentModeKHR > availableModes)
	Chooses a present mode. More...

VkExtent2D	chooseSwapExtent (const VkSurfaceCapabilitiesKHR &capabilities)
	Chooses a swap extent based on the provided capabilities. More...

VkPushConstantRange	getCameraRange ()
	Returns the size of the camera matrix. More...

VkFormat	findSupportedFormat (const std::vector< VkFormat > &candidates, VkImageTiling tiling, VkFormatFeatureFlags features)
	Looks for a suitable format from given candidates. More...

size_t	getNextFrame ()
	Returns the index of the next frame. More...

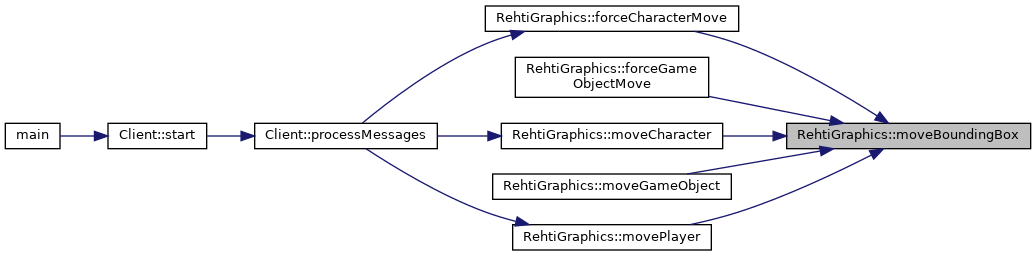

void	moveBoundingBox (int objectID, ObjectType objType, glm::vec3 location)
	Helper function to move a bounding box. More...

void	debugMatrix (glm::mat4 matrix)
	Prints out a matrix. More...

void	debugAABB (const AABB &aabb, int level)
	Prints out the given aabb. More...

void	fillAABB (std::vector< Vertex > vertices, AABB &box)
	Fills the min and max of the given bounding box. More...

Static Private Member Functions

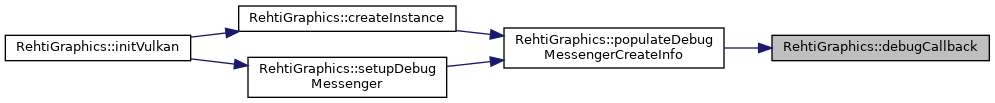

static VKAPI_ATTR VkBool32 VKAPI_CALL	debugCallback (VkDebugUtilsMessageSeverityFlagBitsEXT messageSeverity, VkDebugUtilsMessageTypeFlagsEXT messageType, const VkDebugUtilsMessengerCallbackDataEXT pCallbackData, void pUserData)

static VkResult	CreateDebugUtilsMessengerEXT (VkInstance instance, const VkDebugUtilsMessengerCreateInfoEXT pCreateInfo, const VkAllocationCallbacks pAllocator, VkDebugUtilsMessengerEXT *pDebugMessenger)

static void	DestroyDebugUtilsMessengerEXT (VkInstance instance, VkDebugUtilsMessengerEXT debugMessenger, const VkAllocationCallbacks *pAllocator)

static void	frameBufferResizeCallback (GLFWwindow *window, int width, int height)

Private Attributes
GLFWwindow *	pWindowM

VkInstance	instanceM

VkDebugUtilsMessengerEXT	debugMessengerM

VkSurfaceKHR	surfaceM

Camera	cameraM

VkPhysicalDevice	gpuM

VkDevice	logDeviceM

std::shared_ptr< GraphicsObjectManager >	pObjectManagerM

std::shared_ptr< RehtiGui >	pGuiM

std::shared_mutex	graphicsQueueMutexM

VkQueue	graphicsQueueM

VkQueue	presentQueueM

VkSwapchainKHR	swapChainM

std::vector< VkImage >	swapChainImagesM

VkFormat	swapChainImageFormatM

VkExtent2D	swapChainExtentM

std::vector< VkImageView >	swapChainImageViewsM

std::vector< VkFramebuffer >	swapChainFramebuffersM

AllocatedImage	depthImageM

VkImageView	depthImageViewM

VkFormat	depthFormatM

VkSampler	textureSamplerM

VkRenderPass	renderPassM

std::array< VkPipelineLayout, OBJECT_TYPE_COUNT >	pipelineLayoutsM

std::array< VkPipeline, OBJECT_TYPE_COUNT >	pipelinesM

VkCommandPool	commandPoolM

std::vector< VkCommandBuffer >	commandBuffersM

std::vector< VkSemaphore >	imagesReadyM

std::vector< VkSemaphore >	rendersFinishedM

std::vector< VkFence >	frameFencesM

std::function< void(const Hit &)>	mouseClickCallbackM

uint32_t	widthM

uint32_t	heightM

float	anisotropyM

EngineFlags	engineFlagsM = EngineFlags::NO_FLAGS

EngineStatistics	statsM

std::shared_mutex	dataMutexM
	Mutex that must be acquired before modifying the data structures below (timer has its own mutex) More...

std::array< std::map< int, AABB >, OBJECT_TYPE_COUNT >	boundingBoxesM

std::map< int, GfxOrientation >	gameObjectOrientationsM

std::map< int, CharacterData >	characterOrientationsM

DirectionalLight	sunM

TimerCallbackSystem	timersM

const int	kConcurrentFramesM = 2

size_t	currentFrameM = 0

bool	validationLayersEnabledM = false

const std::vector< const char * >	kValidationlayersM

const std::vector< const char * >	kDeviceExtensionsM

const bool	enableValidationLayers = true

Constructor & Destructor Documentation

◆ RehtiGraphics()

RehtiGraphics::RehtiGraphics	(	uint32_t	width = `1200`,
		uint32_t	height = `900`,
		glm::vec3	cameraLocation = `glm::vec3(0.f)`
	)

Initializes the graphics backend.

Parameters

width	of the window
height	of the window

◆ ~RehtiGraphics()

RehtiGraphics::~RehtiGraphics ( )

Cleans up all the resources used by vulkan.

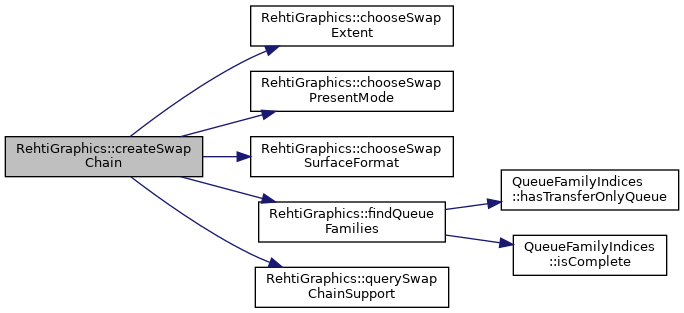

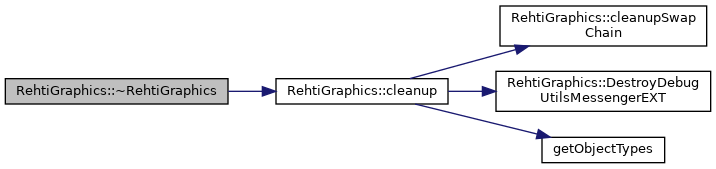

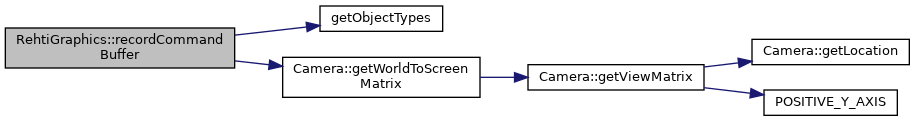

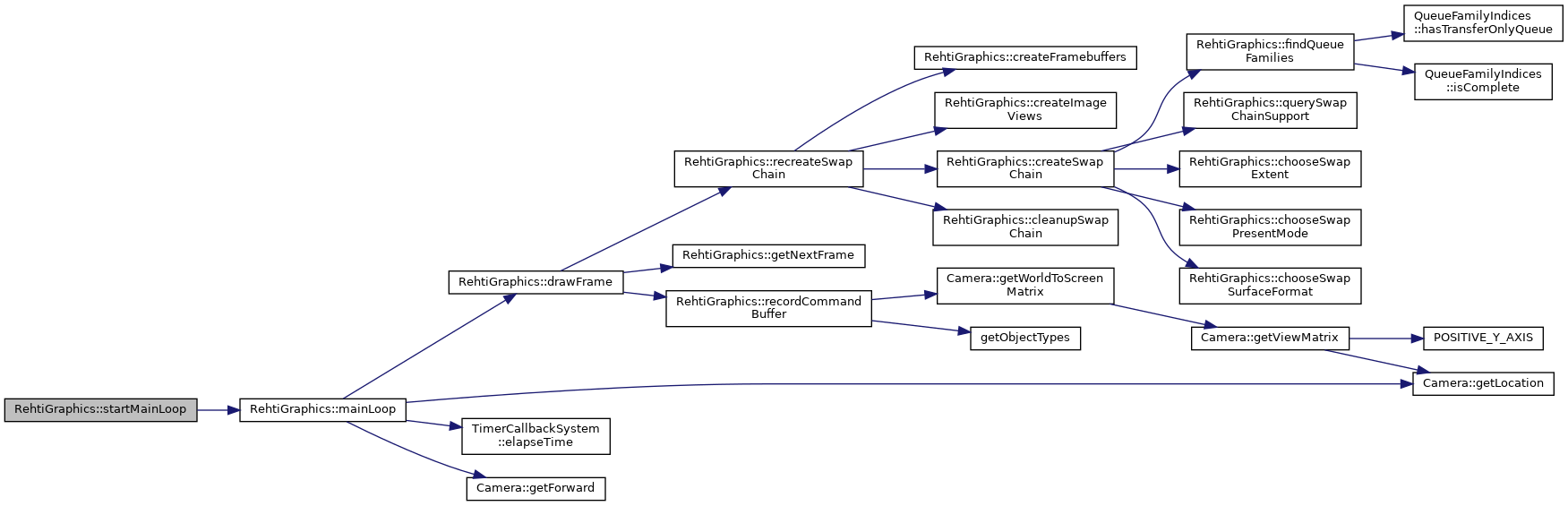

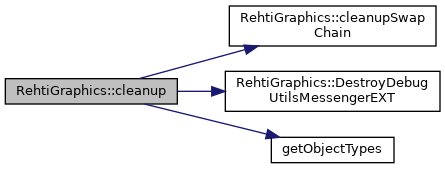

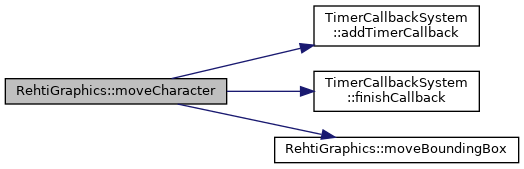

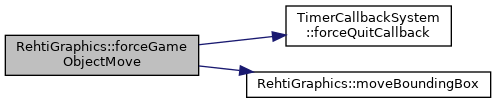

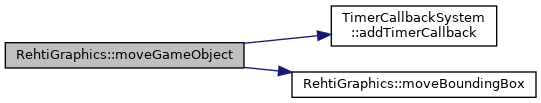

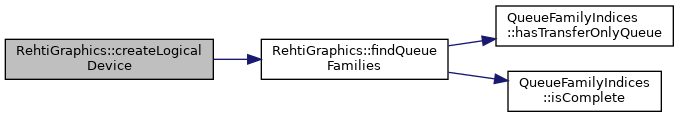

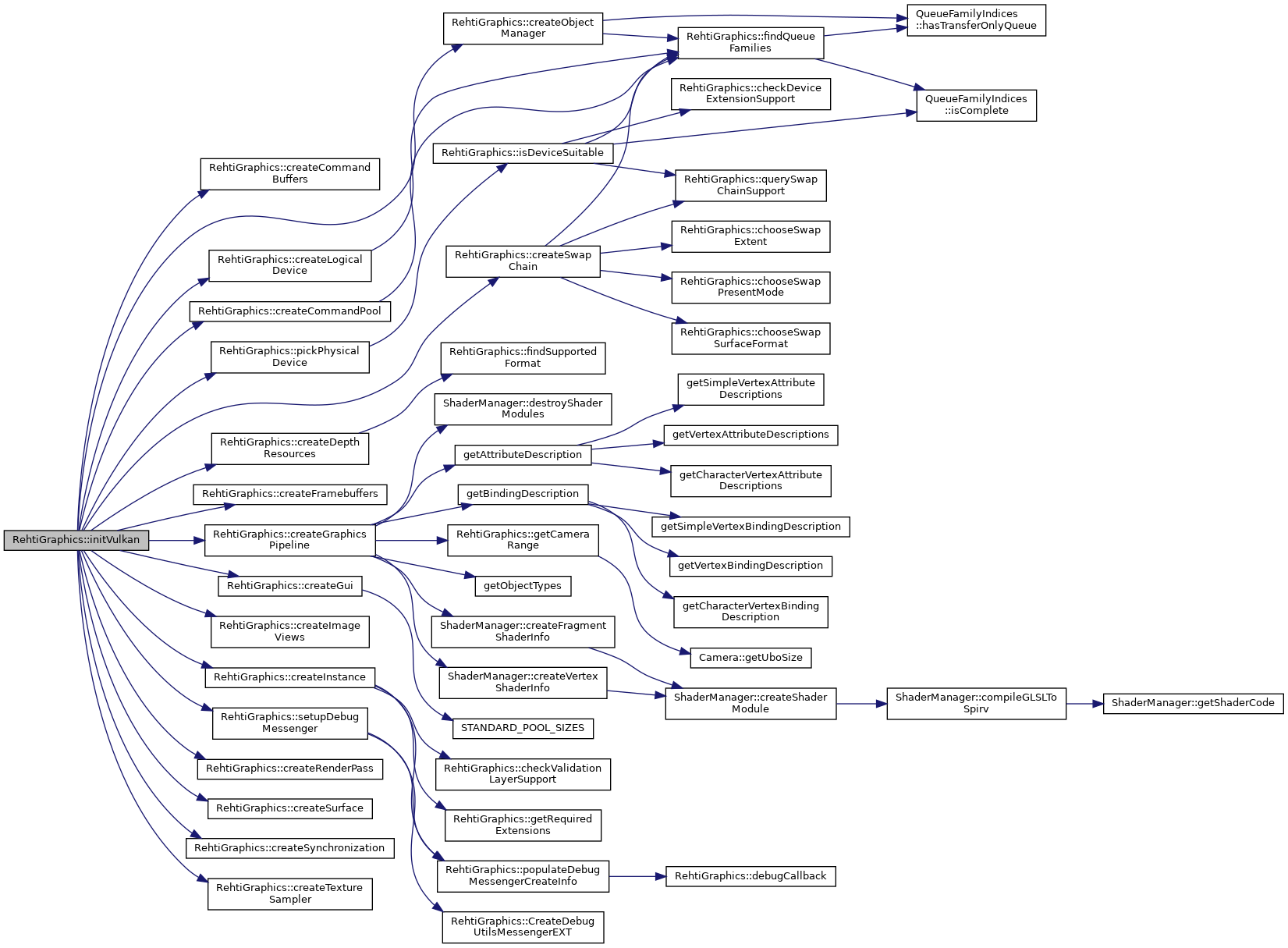

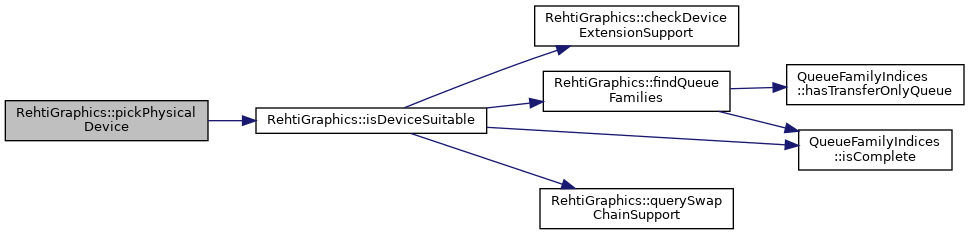

Here is the call graph for this function:

Member Function Documentation

◆ addArea()

bool RehtiGraphics::addArea	(	std::vector< Vertex >	vertices,
		std::vector< uint32_t >	indices,
		std::array< ImageData, 6 >	textures
	)

Adds an area to the game.

Parameters

vertices	are the vertices of the area. They are expected to be moved to their corresponding area coordinates before calling this function.
indices	of the triangles.
textures	of the area. Areas support 5 textures with a blendmap: Order is: blendmap (0), black (1), red (2), green (3), blue (4), alpha (5).

Returns: boolean indicating whether the area was added successfully.

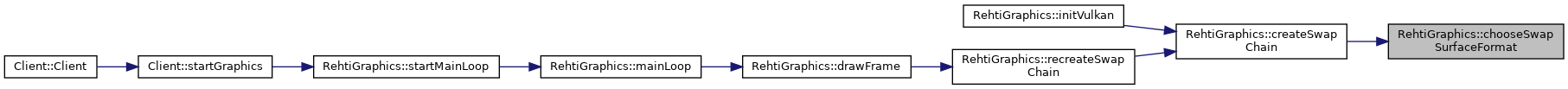

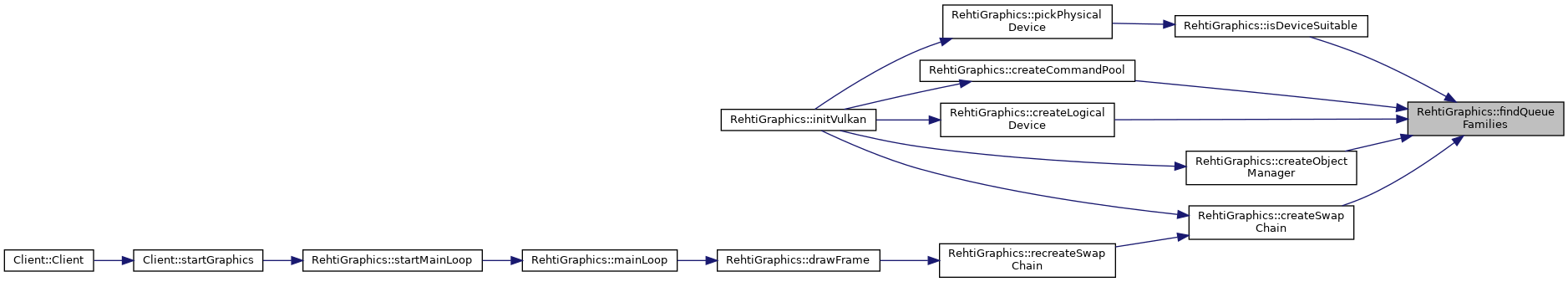

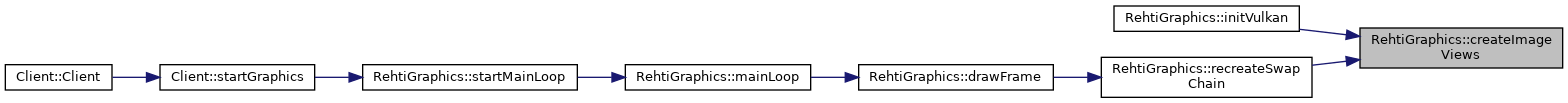

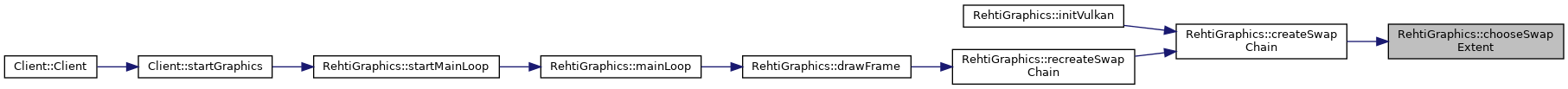

Here is the caller graph for this function:

◆ addCharacterObject()

bool RehtiGraphics::addCharacterObject	(	int	characterID,
		std::vector< CharacterVertex >	vertices,
		std::vector< uint32_t >	indices,
		ImageData	texture,
		std::array< Animation, ANIMATION_TYPE_COUNT >	animations,
		std::vector< BoneNode >	bones,
		std::vector< glm::mat4 >	transformations,
		glm::vec3	location = `glm::vec3(0.f)`,
		float	rotation = `0.f`,
		bool	isPlayer = `false`
	)

Adds a character object with the given id to the graphics backend. Also creates a bounding box for the object.

Parameters

characterID	of the character object.
vertices	of the model
indices	of the triangles of the model
texture	of the model
animations	list of Animation structs for the character
bones	list of BoneNode structs for the character
transformations	list of transformation matrices for the character. IMPORTANT: THE FIRST MATRIX IS THE GLOBAL INVERSE TRANSFORMATION MATRIX. So the transformations start from the second matrix.
location	of the character to be placed
rotation	of the character to be placed

Returns: boolean indicating whether the object was added successfully.

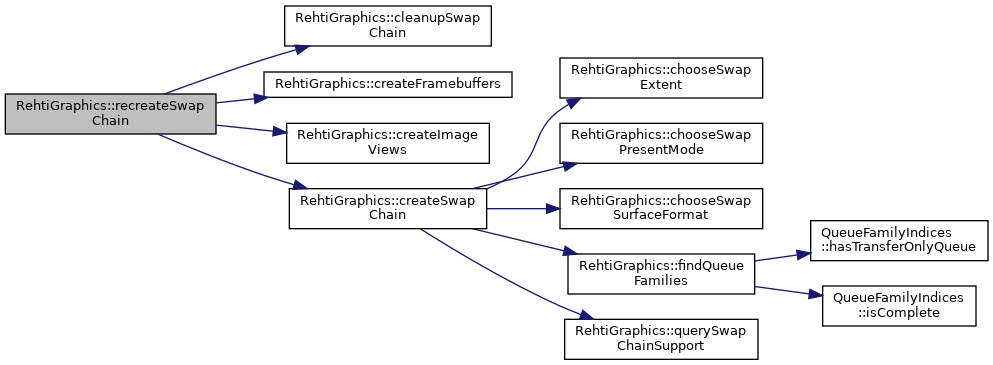

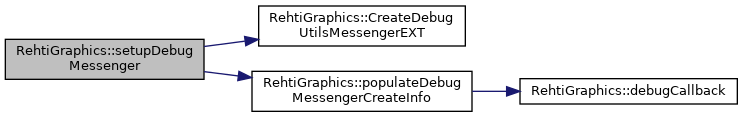

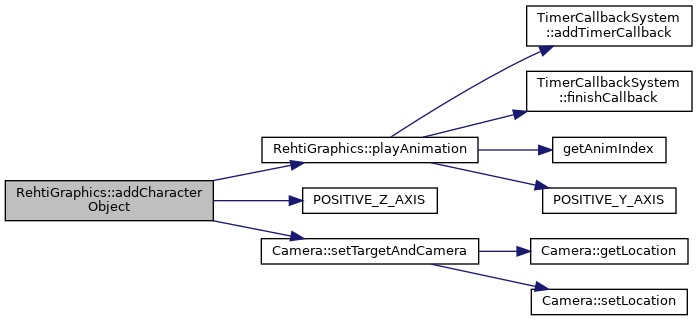

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addGameObject()

bool RehtiGraphics::addGameObject	(	int	objectID,
		std::vector< Vertex >	vertices,
		std::vector< uint32_t >	indices,
		ImageData	texture,
		glm::vec3	location = `glm::vec3(0.f)`,
		float	rotation = `0.f`
	)

Adds a game object with the given id to the graphics backend. Also creates a bounding box for the object.

Parameters

objectID
vertices	of the model
indices	of the triangles of the model
texture	of the model
location	is the location of the model
rotation	is the rotation around y axis clockwise

Returns: boolean indicating whether the object was added successfully.

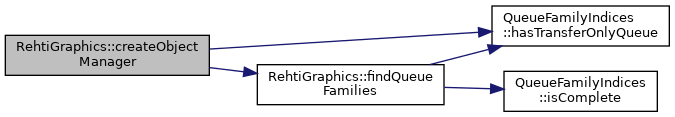

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addMapBoundingBox()

void RehtiGraphics::addMapBoundingBox ( const MapAABBData & mapAABBData )

Adds a bounding box for the world map.

Parameters

mapAABBData see mapAABBData

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addMouseClickCallback()

void RehtiGraphics::addMouseClickCallback ( std::function< void(const Hit &)> callback )

Adds a mouse click callback.

Parameters

callback function after a mouse click has happened

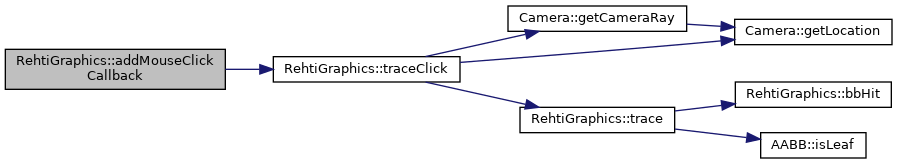

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bbHit()

bool RehtiGraphics::bbHit	(	const glm::vec3	min,
		const glm::vec3	max,
		const glm::vec3	rayOrig,
		const glm::vec3	dirInv,
		float &	t
	)

private

Checks whether the given bounding box is hit by the given ray.

Parameters

min	is the smaller coordinate of the bounding box.
max	is the larger coordinate of the bounding box.
rayOrig	is the origin of the ray.
dirInv	is the coordinate-wise inverse of the direction of the ray.
t	is the distance to the hit point.

Returns: true if hit, false otherwise.

Here is the caller graph for this function:

◆ checkDeviceExtensionSupport()

bool RehtiGraphics::checkDeviceExtensionSupport ( VkPhysicalDevice device )

private

Checks whether the given device supports the required extensions.

Parameters

device to check.

Returns: boolean indicating whether the device supports the required extensions.

Here is the caller graph for this function:

◆ checkValidationLayerSupport()

bool RehtiGraphics::checkValidationLayerSupport ( )

private

Checks whether the given device supports the required layers.

Returns: boolean indicating whether the layers are found.

Here is the caller graph for this function:

◆ chooseSwapExtent()

VkExtent2D RehtiGraphics::chooseSwapExtent ( const VkSurfaceCapabilitiesKHR & capabilities )

private

Chooses a swap extent based on the provided capabilities.

Parameters

capabilities of the surface in use.

Returns: VkExtent2D object.

Here is the caller graph for this function:

◆ chooseSwapPresentMode()

VkPresentModeKHR RehtiGraphics::chooseSwapPresentMode ( const std::vector< VkPresentModeKHR > availableModes )

private

Chooses a present mode.

Parameters

availableModes to choose from.

Returns: Presentmode chosen.

Here is the caller graph for this function:

◆ chooseSwapSurfaceFormat()

VkSurfaceFormatKHR RehtiGraphics::chooseSwapSurfaceFormat ( const std::vector< VkSurfaceFormatKHR > availableFormats )

private

Chooses a surface format.

Parameters

availableFormats to choose from.

Returns: format from the list.

Here is the caller graph for this function:

◆ cleanup()

void RehtiGraphics::cleanup ( )

private

Cleans up used resources.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cleanupSwapChain()

void RehtiGraphics::cleanupSwapChain ( )

private

Cleans up swapchain related resources. This function is used for easier recreation of the swap chain.

Here is the caller graph for this function:

◆ createCommandBuffers()

void RehtiGraphics::createCommandBuffers ( )

private

Creates the command buffers.

Here is the caller graph for this function:

◆ createCommandPool()

void RehtiGraphics::createCommandPool ( )

private

Creates the command pool.

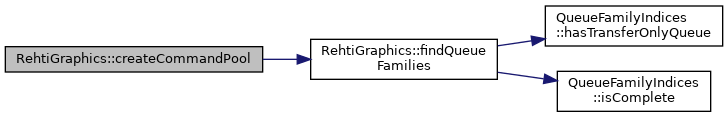

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDebugUtilsMessengerEXT()

VkResult RehtiGraphics::CreateDebugUtilsMessengerEXT	(	VkInstance	instance,
		const VkDebugUtilsMessengerCreateInfoEXT *	pCreateInfo,
		const VkAllocationCallbacks *	pAllocator,
		VkDebugUtilsMessengerEXT *	pDebugMessenger
	)

staticprivate

Here is the caller graph for this function:

◆ createDepthResources()

void RehtiGraphics::createDepthResources ( )

private

Creates resources required for a depth buffer.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createFramebuffers()

void RehtiGraphics::createFramebuffers ( )

private

Creates the framebuffers.

Here is the caller graph for this function:

◆ createGraphicsPipeline()

void RehtiGraphics::createGraphicsPipeline ( )

private

Creates the graphics pipeline.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createGui()

void RehtiGraphics::createGui ( )

private

Creates RehtiGui member and initializes it.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createImageViews()

void RehtiGraphics::createImageViews ( )

private

Creates the image views.

Here is the caller graph for this function:

◆ createInstance()

void RehtiGraphics::createInstance ( )

private

Creates vulkan instance.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createLogicalDevice()

void RehtiGraphics::createLogicalDevice ( )

private

Creates the interactable logical device.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createObjectManager()

void RehtiGraphics::createObjectManager ( )

private

Creates the graphics object manager.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createRenderPass()

void RehtiGraphics::createRenderPass ( )

private

Creates the render pass.

Here is the caller graph for this function:

◆ createSurface()

void RehtiGraphics::createSurface ( )

private

Creates a surface to draw on.

Here is the caller graph for this function:

◆ createSwapChain()

void RehtiGraphics::createSwapChain ( )

private

Creates the swapchain.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createSynchronization()

void RehtiGraphics::createSynchronization ( )

private

Initializes the appropriate semaphores and fences.

Here is the caller graph for this function:

◆ createTextureSampler()

void RehtiGraphics::createTextureSampler ( )

private

Creates a texture sampler.

Here is the caller graph for this function:

◆ debugAABB()

void RehtiGraphics::debugAABB	(	const AABB &	aabb,
		int	level
	)

private

Prints out the given aabb.

Parameters

aabb

Here is the call graph for this function:

◆ debugCallback()

VKAPI_ATTR VkBool32 VKAPI_CALL RehtiGraphics::debugCallback	(	VkDebugUtilsMessageSeverityFlagBitsEXT	messageSeverity,
		VkDebugUtilsMessageTypeFlagsEXT	messageType,
		const VkDebugUtilsMessengerCallbackDataEXT *	pCallbackData,
		void *	pUserData
	)

staticprivate

Here is the caller graph for this function:

◆ debugMatrix()

void RehtiGraphics::debugMatrix ( glm::mat4 matrix )

private

Prints out a matrix.

Parameters

matrix to print

◆ DestroyDebugUtilsMessengerEXT()

void RehtiGraphics::DestroyDebugUtilsMessengerEXT	(	VkInstance	instance,
		VkDebugUtilsMessengerEXT	debugMessenger,
		const VkAllocationCallbacks *	pAllocator
	)

staticprivate

Here is the caller graph for this function:

◆ doesCharacterExist()

bool RehtiGraphics::doesCharacterExist ( int characterID )

Checks if a characterwith the given id exists.

Parameters

characterID

Returns

◆ doesGameObjectExist()

bool RehtiGraphics::doesGameObjectExist ( int objectID )

Checks if a game object with the given id exists.

Parameters

objectID

Returns

◆ drawFrame()

void RehtiGraphics::drawFrame ( )

private

Draws a frame and records the previous frame time.

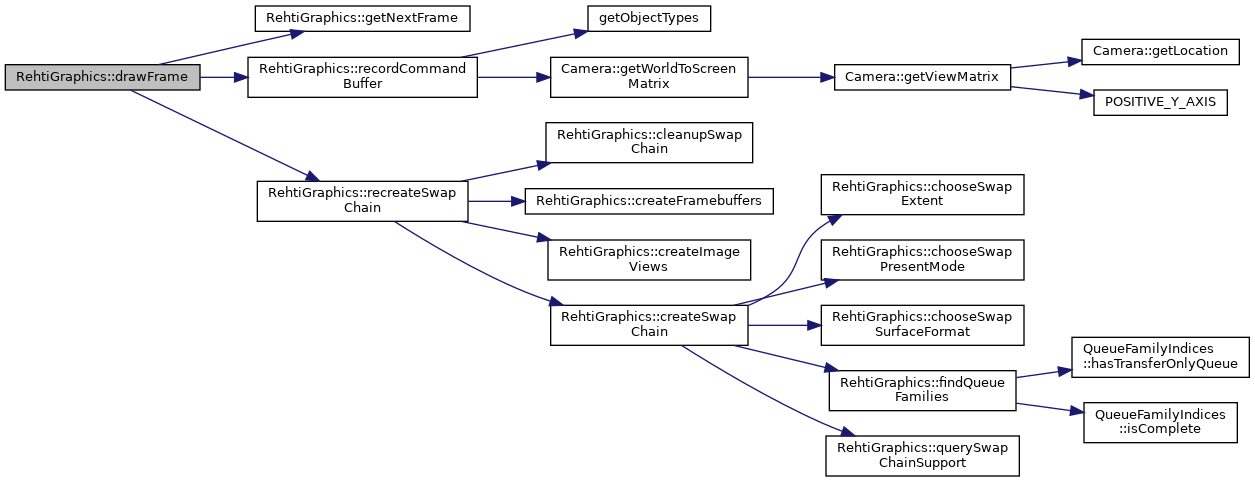

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fillAABB()

void RehtiGraphics::fillAABB	(	std::vector< Vertex >	vertices,
		AABB &	box
	)

private

Fills the min and max of the given bounding box.

Parameters

vertices	to create a bounding box for.
box	to fill.

◆ findQueueFamilies()

QueueFamilyIndices RehtiGraphics::findQueueFamilies ( VkPhysicalDevice device )

private

Looks for queue families.

Parameters

device to look queues for.

Returns: Struct indicating queue family support.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findSupportedFormat()

VkFormat RehtiGraphics::findSupportedFormat	(	const std::vector< VkFormat > &	candidates,
		VkImageTiling	tiling,
		VkFormatFeatureFlags	features
	)

private

Looks for a suitable format from given candidates.

Parameters

candidates
tiling
features

Returns

Here is the caller graph for this function:

◆ forceCharacterMove()

void RehtiGraphics::forceCharacterMove	(	int	characterID,
		glm::vec3	location
	)

Forces character to the given location, cancelling any remaining movement callbacks and animations.

Parameters

characterID
location

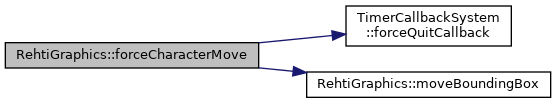

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forceGameObjectMove()

void RehtiGraphics::forceGameObjectMove	(	int	objectID,
		glm::vec3	location
	)

Forces the game object to move to the given location, quitting any remaining movement callbacks.

Parameters

objectID	of the object to move.
location	to move the object to.

Here is the call graph for this function:

◆ forceGameObjectRotate()

void RehtiGraphics::forceGameObjectRotate	(	int	objectID,
		float	radians
	)

Forces game object rotation to the given angle, quitting any remaining rotation callbacks.

Parameters

objectID	of the object to rotate.
radians	to rotate the object by.

Here is the call graph for this function:

◆ forcePlayerMove()

void RehtiGraphics::forcePlayerMove	(	int	playerID,
		glm::vec3	location
	)

Forces player to move to the location given, cancelling any remaining movement callbacks and animations.

Parameters

playerID	of the player to move.
location	to move the player to.

Here is the call graph for this function:

◆ frameBufferResizeCallback()

void RehtiGraphics::frameBufferResizeCallback	(	GLFWwindow *	window,
		int	width,
		int	height
	)

staticprivate

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCameraRange()

VkPushConstantRange RehtiGraphics::getCameraRange ( )

private

Returns the size of the camera matrix.

Returns: VkPushConstantRange object.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getGui()

std::shared_ptr< RehtiGui > RehtiGraphics::getGui ( )

Here is the caller graph for this function:

◆ getNextFrame()

size_t RehtiGraphics::getNextFrame ( )

private

Returns the index of the next frame.

Returns

Here is the caller graph for this function:

◆ getRequiredExtensions()

std::vector< const char * > RehtiGraphics::getRequiredExtensions ( )

private

Returns the required extensions as c strings.

Returns: vector of c strings.

Here is the caller graph for this function:

◆ initVulkan()

void RehtiGraphics::initVulkan ( )

private

Initializes vulkan instance.

Here is the call graph for this function:

◆ initWindow()

void RehtiGraphics::initWindow ( )

private

Initializes the window.

Here is the call graph for this function:

◆ isDeviceSuitable()

bool RehtiGraphics::isDeviceSuitable ( VkPhysicalDevice device )

private

Checks whether the given device supports the required features.

Parameters

device to check.

Returns: boolean indicating whether the device supports the required features.

Here is the call graph for this function:

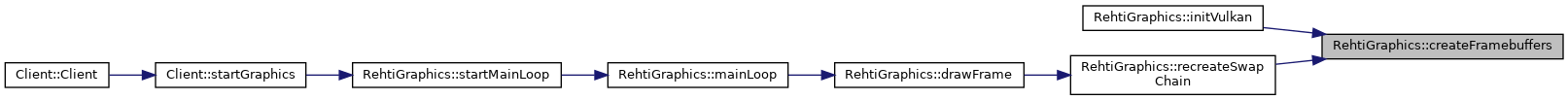

Here is the caller graph for this function:

◆ mainLoop()

void RehtiGraphics::mainLoop ( )

private

Loops, polls events and draws frames.

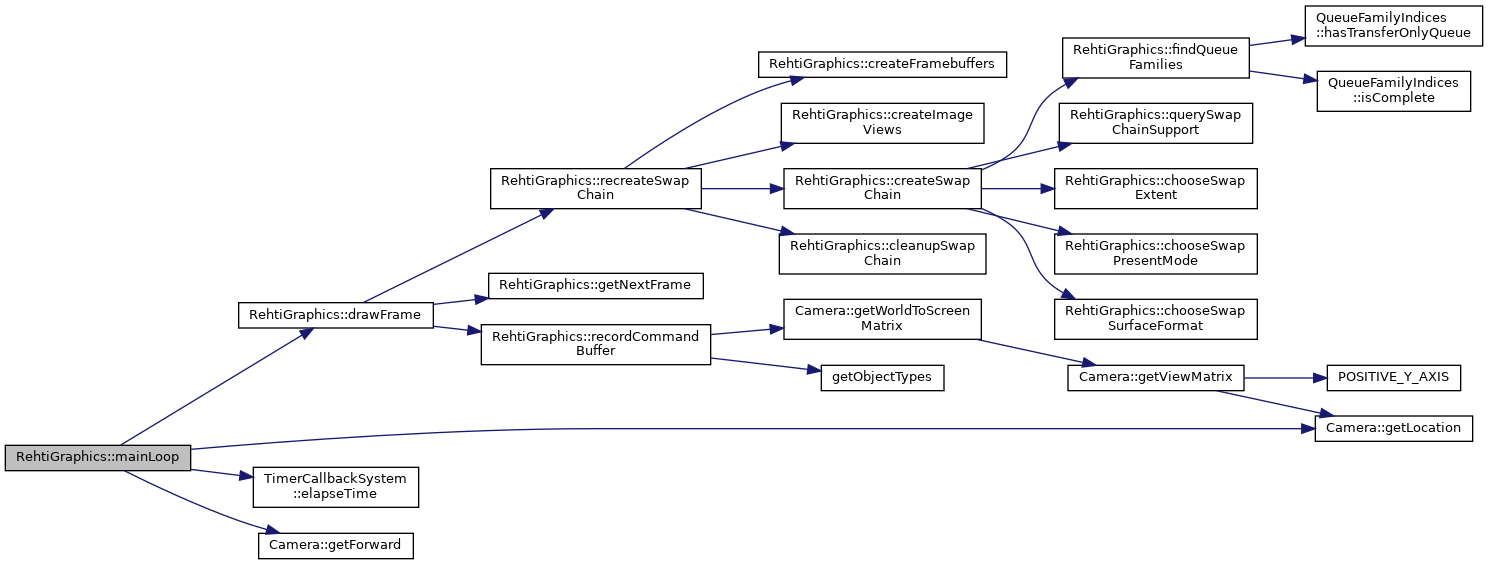

Here is the call graph for this function:

Here is the caller graph for this function:

◆ moveBoundingBox()

void RehtiGraphics::moveBoundingBox	(	int	objectID,
		ObjectType	objType,
		glm::vec3	location
	)

private

Helper function to move a bounding box.

Parameters

objectID	of the object
objType	of the object
location	that the object is to be moved to

Here is the caller graph for this function:

◆ moveCharacter()

void RehtiGraphics::moveCharacter	(	int	characterID,
		glm::vec3	location,
		float	timeInSeconds
	)

Moves character smoothly (without animation) to the given location in the given time.

Parameters

characterID	to move
location	to move the character into
timeInSeconds	that this action takes.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ moveGameObject()

void RehtiGraphics::moveGameObject	(	int	objectID,
		glm::vec3	location,
		float	timeInSeconds
	)

Moves a game object to the given location in the given time.

Parameters

objectID	of the object to move.
location	to move the object to.
timeInSeconds	that it takes to move the object.

Here is the call graph for this function:

◆ movePlayer()

void RehtiGraphics::movePlayer	(	int	playerID,
		glm::vec3	location,
		float	timeInSeconds
	)

Moves the player smoothly (without animation) to the given location in the given time.

Parameters

playerID	of the player to move.
location	to move the player to.
timeInSeconds	it takes for the player to move to that location.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pickPhysicalDevice()

void RehtiGraphics::pickPhysicalDevice ( )

private

Chooses an appropriate gpu.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ playAnimation()

void RehtiGraphics::playAnimation	(	int	characterID,
		AnimationConfig	cfg
	)

Plays an animation for the given character.

Parameters

characterID
cfg

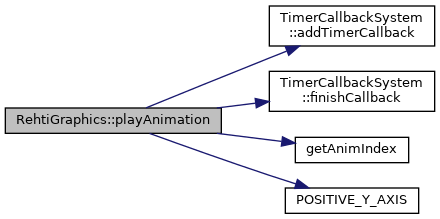

Here is the call graph for this function:

Here is the caller graph for this function:

◆ populateDebugMessengerCreateInfo()

void RehtiGraphics::populateDebugMessengerCreateInfo ( VkDebugUtilsMessengerCreateInfoEXT & createInfo )

private

Populates the debug messenger info.

Parameters

createInfo

Here is the call graph for this function:

Here is the caller graph for this function:

◆ querySwapChainSupport()

SwapChainSupportDetails RehtiGraphics::querySwapChainSupport ( VkPhysicalDevice device )

private

Looks for swapchain support.

Parameters

device to look support for.

Returns: Swapchain support details.

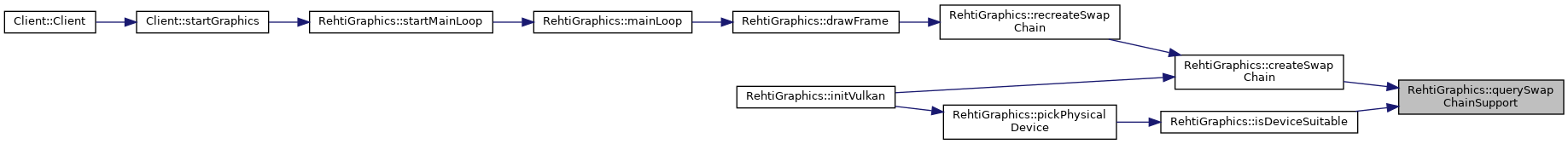

Here is the caller graph for this function:

◆ rateDevice()

int RehtiGraphics::rateDevice ( VkPhysicalDevice device )

private

Rates the given gpu.

Parameters

device to rate.

◆ recordCommandBuffer()

void RehtiGraphics::recordCommandBuffer	(	VkCommandBuffer	cmdBuffer,
		uint32_t	imageIndex
	)

private

Records the command buffer.

Parameters

cmdBuffer	to record to.
imageIndex	of the swapchain image.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ recreateSwapChain()

void RehtiGraphics::recreateSwapChain ( )

private

Recreates the swapchain.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeCharacterObject()

bool RehtiGraphics::removeCharacterObject ( int characterID )

Removes a character object with the given id from the graphics backend.

Parameters

characterID of the character object.

Returns: boolean indicating whether the object was removed successfully.

Here is the caller graph for this function:

◆ removeGameObject()

bool RehtiGraphics::removeGameObject ( int objectID )

Removes a game object with the given id from the graphics backend.

Parameters

objectID of the game object.

Returns: boolean indicating whether the object was removed successfully.

Here is the caller graph for this function:

◆ rotateGameObject()

void RehtiGraphics::rotateGameObject	(	int	objectID,
		float	radians,
		float	timeInSeconds
	)

Rotates a game object by given radian angle in the given time frame.

Parameters

objectID	of the object to rotate.
radians	to rotate the object by.
timeInSeconds	that it takes to rotate the object.

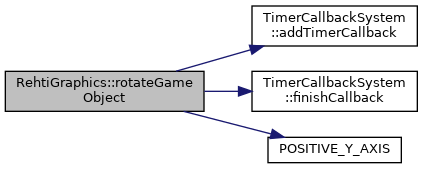

Here is the call graph for this function:

◆ setEngineFlags()

void RehtiGraphics::setEngineFlags ( EngineFlags flags )

Sets flags for engine. Flags can only be set by this interface, not unset.

Parameters

flags to be set

Here is the caller graph for this function:

◆ setupDebugMessenger()

void RehtiGraphics::setupDebugMessenger ( )

private

Setups the debug messenger.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ startMainLoop()

void RehtiGraphics::startMainLoop ( )

Starts a rendering loop until the window is closed.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ trace()

bool RehtiGraphics::trace	(	const glm::vec3	orig,
		const glm::vec3	dirInv,
		const AABB *	pBoxNode,
		AABB &	boxHit,
		float &	t
	)

private

Traces a given ray against a given bounding box.

Parameters

orig	is the origin of the ray.
dirInv	is the inverse of the direction of the ray.
boxNode	is the bounding box to trace against.
boxHit	is the bounding box that was hit.

Returns: the distance to the hit point.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ traceClick()

Hit RehtiGraphics::traceClick ( )

Traces a ray against all bounding boxes, starting with objects, then characters and lastly the map.

Returns: Hit object containing information about the hit.

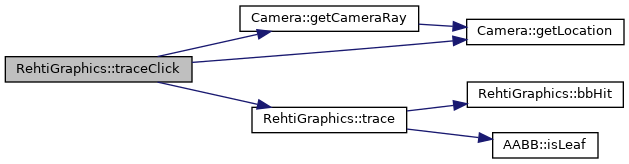

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transformTestObject()

void RehtiGraphics::transformTestObject	(	int	id,
		glm::mat4	transformation
	)

Transforms object with the given id.

Member Data Documentation

◆ anisotropyM

float RehtiGraphics::anisotropyM

private

◆ boundingBoxesM

std::array<std::map<int, AABB>, OBJECT_TYPE_COUNT> RehtiGraphics::boundingBoxesM

private

◆ cameraM

Camera RehtiGraphics::cameraM

private

◆ characterOrientationsM

std::map<int, CharacterData> RehtiGraphics::characterOrientationsM

private

◆ commandBuffersM

std::vector<VkCommandBuffer> RehtiGraphics::commandBuffersM

private

◆ commandPoolM

VkCommandPool RehtiGraphics::commandPoolM

private

◆ currentFrameM

size_t RehtiGraphics::currentFrameM = 0

private

◆ dataMutexM

std::shared_mutex RehtiGraphics::dataMutexM

private

Mutex that must be acquired before modifying the data structures below (timer has its own mutex)

◆ debugMessengerM

VkDebugUtilsMessengerEXT RehtiGraphics::debugMessengerM

private

◆ depthFormatM

VkFormat RehtiGraphics::depthFormatM

private

◆ depthImageM

AllocatedImage RehtiGraphics::depthImageM

private

◆ depthImageViewM

VkImageView RehtiGraphics::depthImageViewM

private

◆ enableValidationLayers

const bool RehtiGraphics::enableValidationLayers = true

private

◆ engineFlagsM

EngineFlags RehtiGraphics::engineFlagsM = EngineFlags::NO_FLAGS

private

◆ frameFencesM

std::vector<VkFence> RehtiGraphics::frameFencesM

private

◆ gameObjectOrientationsM

std::map<int, GfxOrientation> RehtiGraphics::gameObjectOrientationsM

private

◆ gpuM

VkPhysicalDevice RehtiGraphics::gpuM

private

◆ graphicsQueueM

VkQueue RehtiGraphics::graphicsQueueM

private

◆ graphicsQueueMutexM

std::shared_mutex RehtiGraphics::graphicsQueueMutexM

private

◆ heightM

uint32_t RehtiGraphics::heightM

private

◆ imagesReadyM

std::vector<VkSemaphore> RehtiGraphics::imagesReadyM

private

◆ instanceM

VkInstance RehtiGraphics::instanceM

private

◆ kConcurrentFramesM

const int RehtiGraphics::kConcurrentFramesM = 2

private

◆ kDeviceExtensionsM

const std::vector<const char*> RehtiGraphics::kDeviceExtensionsM

private

Initial value:

= {

VK_KHR_SWAPCHAIN_EXTENSION_NAME}

◆ kValidationlayersM

const std::vector<const char*> RehtiGraphics::kValidationlayersM

private

Initial value:

= {

"VK_LAYER_KHRONOS_validation"}

◆ logDeviceM

VkDevice RehtiGraphics::logDeviceM

private

◆ mouseClickCallbackM

std::function<void(const Hit&)> RehtiGraphics::mouseClickCallbackM

private

◆ pGuiM

std::shared_ptr<RehtiGui> RehtiGraphics::pGuiM

private

◆ pipelineLayoutsM

std::array<VkPipelineLayout, OBJECT_TYPE_COUNT> RehtiGraphics::pipelineLayoutsM

private

◆ pipelinesM

std::array<VkPipeline, OBJECT_TYPE_COUNT> RehtiGraphics::pipelinesM

private

◆ pObjectManagerM

std::shared_ptr<GraphicsObjectManager> RehtiGraphics::pObjectManagerM

private

◆ presentQueueM

VkQueue RehtiGraphics::presentQueueM

private

◆ pWindowM

GLFWwindow* RehtiGraphics::pWindowM

private

◆ renderPassM

VkRenderPass RehtiGraphics::renderPassM

private

◆ rendersFinishedM

std::vector<VkSemaphore> RehtiGraphics::rendersFinishedM

private

◆ statsM

EngineStatistics RehtiGraphics::statsM

private

◆ sunM

DirectionalLight RehtiGraphics::sunM

private

◆ surfaceM

VkSurfaceKHR RehtiGraphics::surfaceM

private

◆ swapChainExtentM

VkExtent2D RehtiGraphics::swapChainExtentM

private

◆ swapChainFramebuffersM

std::vector<VkFramebuffer> RehtiGraphics::swapChainFramebuffersM

private

◆ swapChainImageFormatM

VkFormat RehtiGraphics::swapChainImageFormatM

private

◆ swapChainImagesM

std::vector<VkImage> RehtiGraphics::swapChainImagesM

private

◆ swapChainImageViewsM

std::vector<VkImageView> RehtiGraphics::swapChainImageViewsM

private

◆ swapChainM

VkSwapchainKHR RehtiGraphics::swapChainM

private

◆ textureSamplerM

VkSampler RehtiGraphics::textureSamplerM

private

◆ timersM

TimerCallbackSystem RehtiGraphics::timersM

private

◆ validationLayersEnabledM

bool RehtiGraphics::validationLayersEnabledM = false

private

◆ widthM

uint32_t RehtiGraphics::widthM

private

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ RehtiGraphics()

◆ ~RehtiGraphics()

Member Function Documentation

◆ addArea()

◆ addCharacterObject()

◆ addGameObject()

◆ addMapBoundingBox()

◆ addMouseClickCallback()

◆ bbHit()

◆ checkDeviceExtensionSupport()

◆ checkValidationLayerSupport()

◆ chooseSwapExtent()

◆ chooseSwapPresentMode()

◆ chooseSwapSurfaceFormat()

◆ cleanup()

◆ cleanupSwapChain()

◆ createCommandBuffers()

◆ createCommandPool()

◆ CreateDebugUtilsMessengerEXT()

◆ createDepthResources()

◆ createFramebuffers()

◆ createGraphicsPipeline()

◆ createGui()

◆ createImageViews()

◆ createInstance()

◆ createLogicalDevice()

◆ createObjectManager()

◆ createRenderPass()

◆ createSurface()

◆ createSwapChain()

◆ createSynchronization()

◆ createTextureSampler()

◆ debugAABB()

◆ debugCallback()

◆ debugMatrix()

◆ DestroyDebugUtilsMessengerEXT()

◆ doesCharacterExist()

◆ doesGameObjectExist()

◆ drawFrame()

◆ fillAABB()

◆ findQueueFamilies()

◆ findSupportedFormat()

◆ forceCharacterMove()

◆ forceGameObjectMove()

◆ forceGameObjectRotate()

◆ forcePlayerMove()

◆ frameBufferResizeCallback()

◆ getCameraRange()

◆ getGui()

◆ getNextFrame()

◆ getRequiredExtensions()

◆ initVulkan()

◆ initWindow()

◆ isDeviceSuitable()

◆ mainLoop()

◆ moveBoundingBox()

◆ moveCharacter()

◆ moveGameObject()

◆ movePlayer()

◆ pickPhysicalDevice()

◆ playAnimation()

◆ populateDebugMessengerCreateInfo()

◆ querySwapChainSupport()

◆ rateDevice()

◆ recordCommandBuffer()

◆ recreateSwapChain()

◆ removeCharacterObject()

◆ removeGameObject()

◆ rotateGameObject()

◆ setEngineFlags()

◆ setupDebugMessenger()

◆ startMainLoop()

◆ trace()

◆ traceClick()

◆ transformTestObject()
