server/src/world/Utils.hpp File Reference

#include "Coordinates.hpp"
#include "RehtiReader.hpp"
#include <memory>
#include <vector>

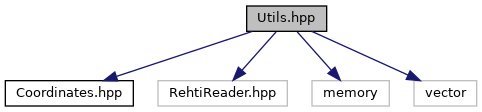

Include dependency graph for server/src/world/Utils.hpp:

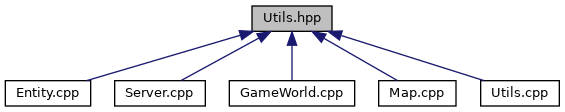

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Node

Enumerations
enum	Direction {   NORTH , NORTH_EAST , EAST , SOUTH_EAST ,   SOUTH , SOUTH_WEST , WEST , NORTH_WEST }

Functions
bool	isValidCell (const std::vector< std::vector< uint8_t >> &map, std::pair< int, int > cell, Direction dir)
	Check if cell is valid and accessible from given direction. More...
unsigned int	euclideanDistance (std::pair< int, int > start, std::pair< int, int > end)
	Calculate the euclidean distance between two points. More...
std::vector< std::pair< int, int > >	astar (const std::vector< std::vector< uint8_t >> &map, std::pair< int, int > start, std::pair< int, int > end)
	A-star algorithm made to work with the access map format. Allows diagonal movement and has a heuristic of euclidean distance. More...

Enumeration Type Documentation

Direction

enum Direction

Enumerator
NORTH
NORTH_EAST
EAST
SOUTH_EAST
SOUTH
SOUTH_WEST
WEST
NORTH_WEST

Function Documentation

astar()

std::vector<std::pair<int, int> > astar	(	const std::vector< std::vector< uint8_t >> &	map,
		std::pair< int, int >	start,
		std::pair< int, int >	end
	)

A-star algorithm made to work with the access map format. Allows diagonal movement and has a heuristic of euclidean distance.

Parameters

map
start
end

Returns

Returns a vector containing the path from start to finish. Start is not included in the path, but end is.

Here is the call graph for this function:

Here is the caller graph for this function:

euclideanDistance()

unsigned int euclideanDistance	(	std::pair< int, int >	start,
		std::pair< int, int >	end
	)

Calculate the euclidean distance between two points.

Parameters

start	pair (x, y)
end	pair (x, y)

Returns

Euclidean distance in tiles

Here is the caller graph for this function:

isValidCell()

bool isValidCell	(	const std::vector< std::vector< uint8_t >> &	map,
		std::pair< int, int >	cell,
		Direction	dir
	)

Check if cell is valid and accessible from given direction.

Parameters

map	The access map of the map.
cell	The cell to check.
dir	The direction from which the cell is accessed.

Returns

true if the cell is valid, false otherwise.

Here is the caller graph for this function:
