Server Class Reference

Main class for the server. More...

#include <Server.hpp>

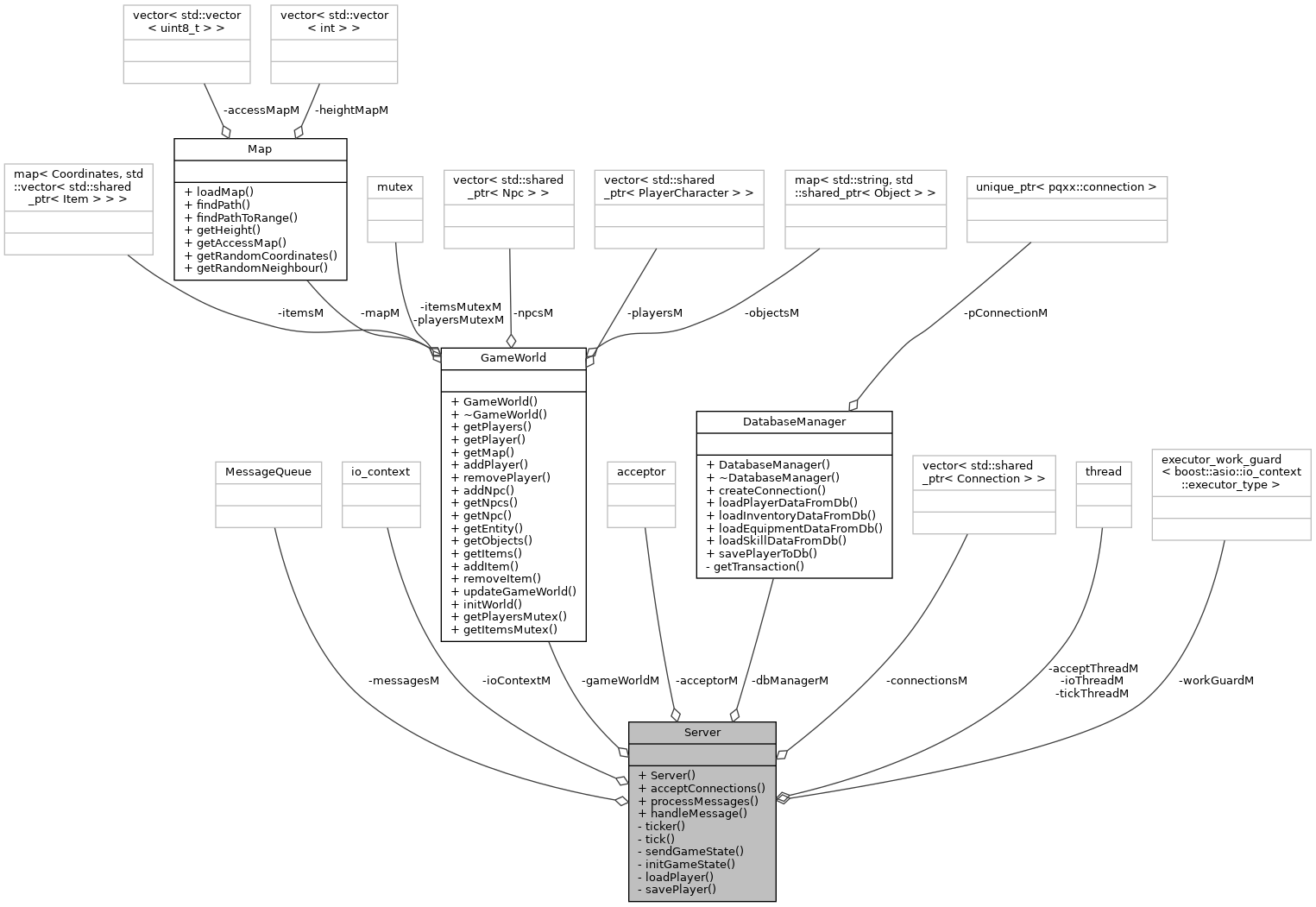

Collaboration diagram for Server:

Public Member Functions
	Server ()
void	acceptConnections ()
	Function to accept new connections from clients, runs on a seperate thread. More...
void	processMessages ()
	Server's main loop for processing messages. More...
void	handleMessage (const Message &msg)
	Function to parse and act upon messages received from clients. More...

Private Member Functions
void	ticker ()
	Timer function that is used to start server ticks, runs on a separate thread. More...
void	tick ()
	Function that updates the gamestate on each server tick, called by ticker() More...
void	sendGameState ()
	Sends the current gamestate to connected clients. More...
void	initGameState ()
	Initializes the gamestate and gameworld. More...
bool	loadPlayer (std::string username, std::string password, const std::shared_ptr< Connection > &connection)
	Loads a player's data from the database and adds the player to the game. More...
void	savePlayer (int playerId)
	Saves a player's data to the database. More...

Private Attributes
boost::asio::io_context	ioContextM
boost::asio::ip::tcp::acceptor	acceptorM
std::vector< std::shared_ptr< Connection > >	connectionsM
MessageQueue	messagesM
std::thread	ioThreadM
std::thread	acceptThreadM
std::thread	tickThreadM
boost::asio::executor_work_guard< boost::asio::io_context::executor_type >	workGuardM
GameWorld	gameWorldM
DatabaseManager	dbManagerM

Detailed Description

Main class for the server.

Constructor & Destructor Documentation

Server()

Server::Server

(

)

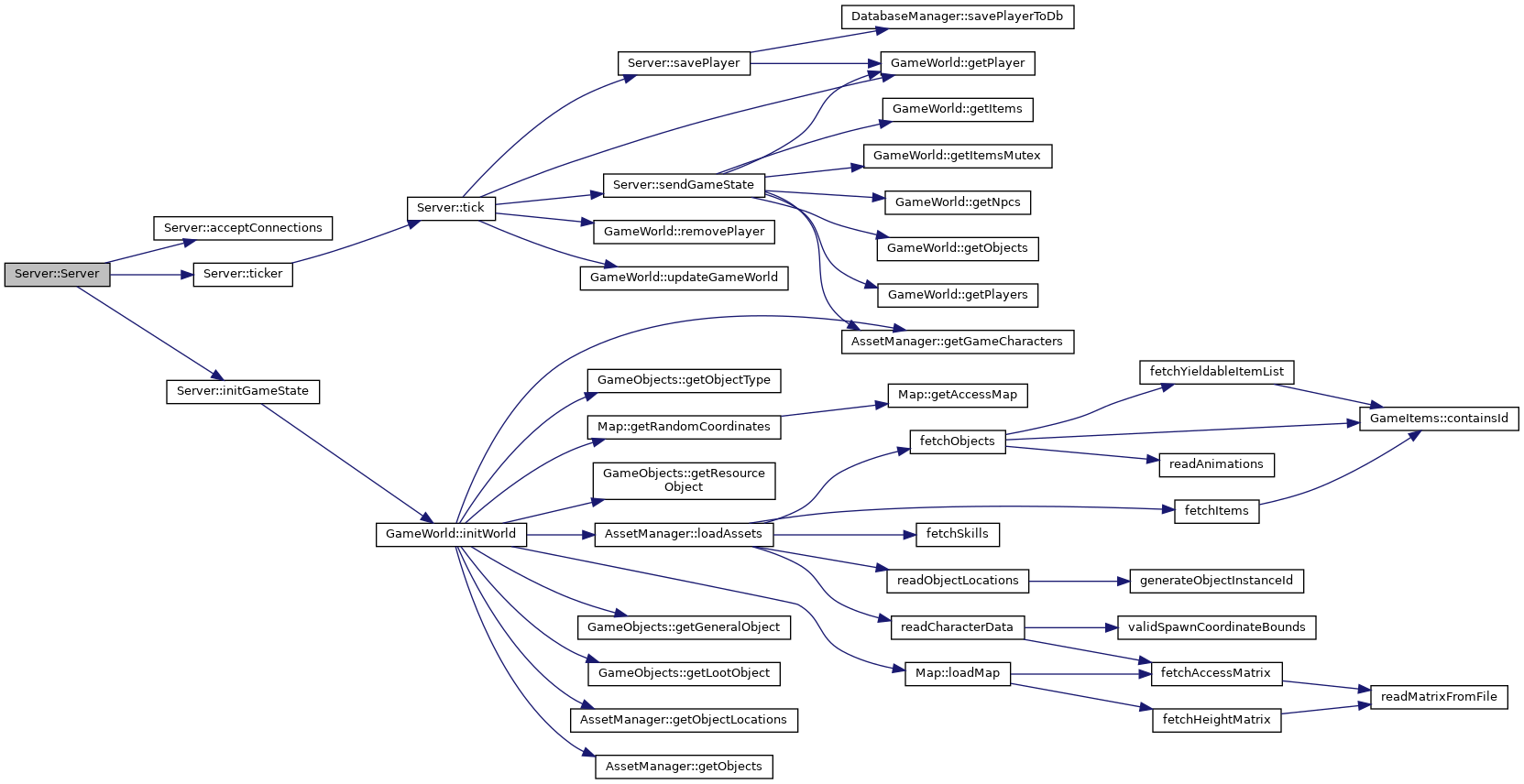

Here is the call graph for this function:

Member Function Documentation

acceptConnections()

void Server::acceptConnections

(

)

Function to accept new connections from clients, runs on a seperate thread.

Here is the caller graph for this function:

handleMessage()

void Server::handleMessage

(

const Message &

msg

)

Function to parse and act upon messages received from clients.

Parameters

msg

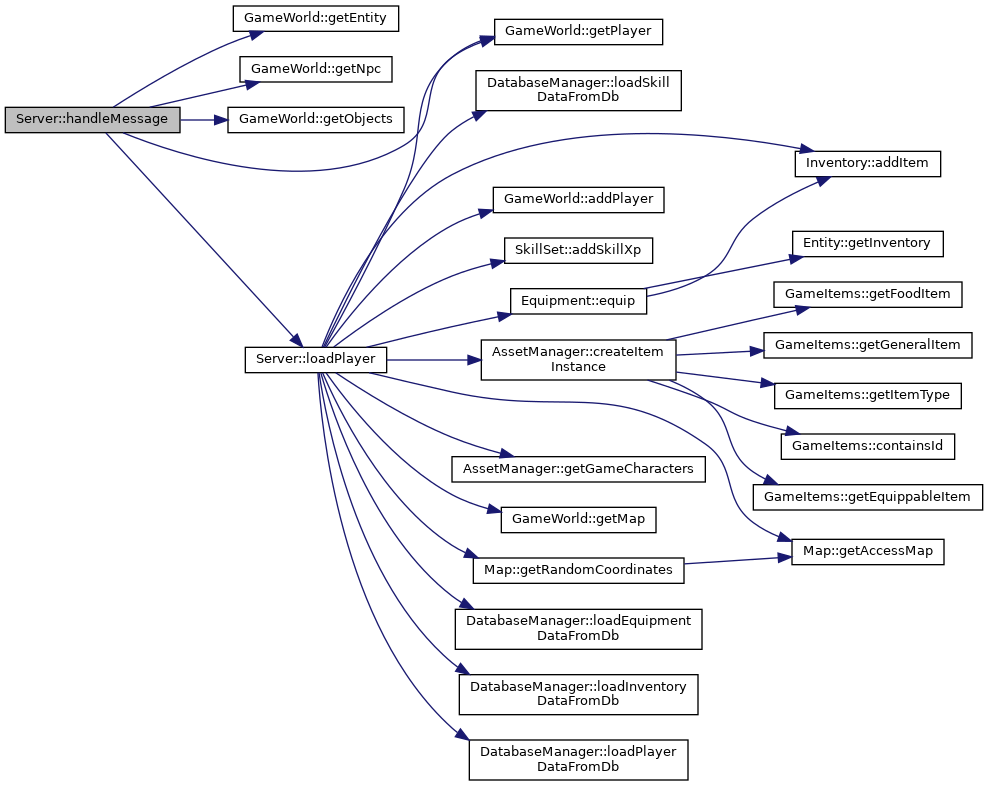

Here is the call graph for this function:

Here is the caller graph for this function:

initGameState()

void Server::initGameState ( )

private

Initializes the gamestate and gameworld.

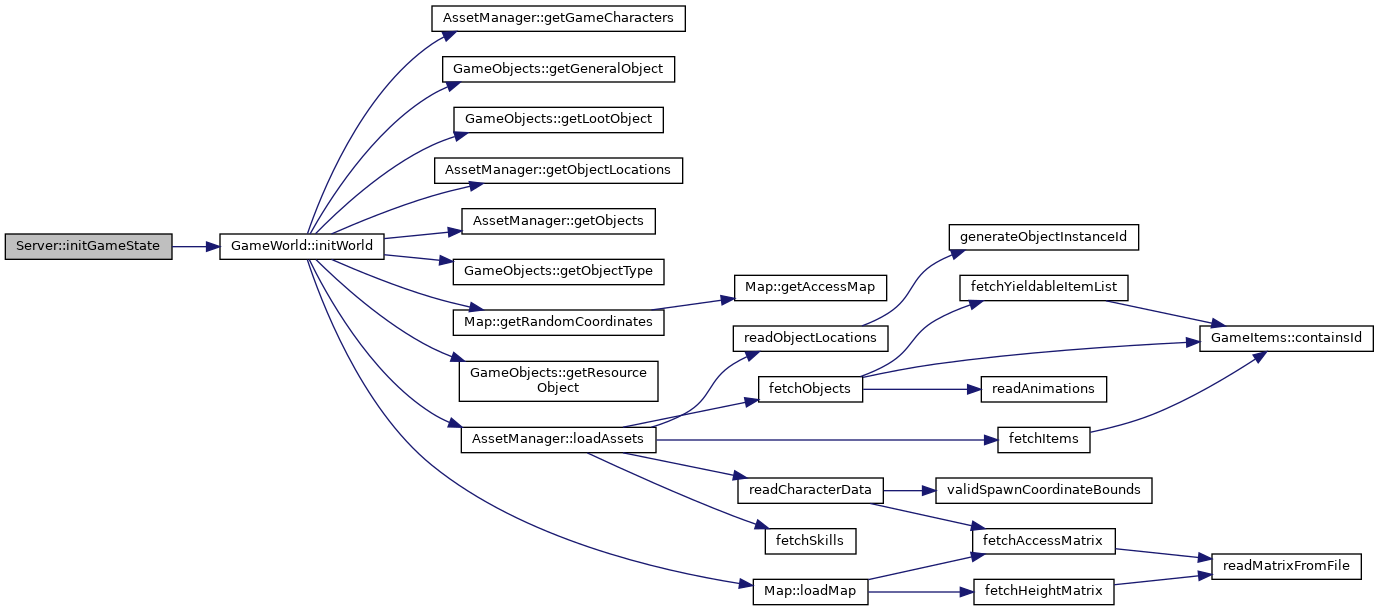

Here is the call graph for this function:

Here is the caller graph for this function:

loadPlayer()

bool Server::loadPlayer ( std::string  username, std::string  password, const std::shared_ptr< Connection > &  connection  )

private

Loads a player's data from the database and adds the player to the game.

Parameters

username
password
connection

Returns

True if player was loaded successfully, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

processMessages()

void Server::processMessages

(

)

Server's main loop for processing messages.

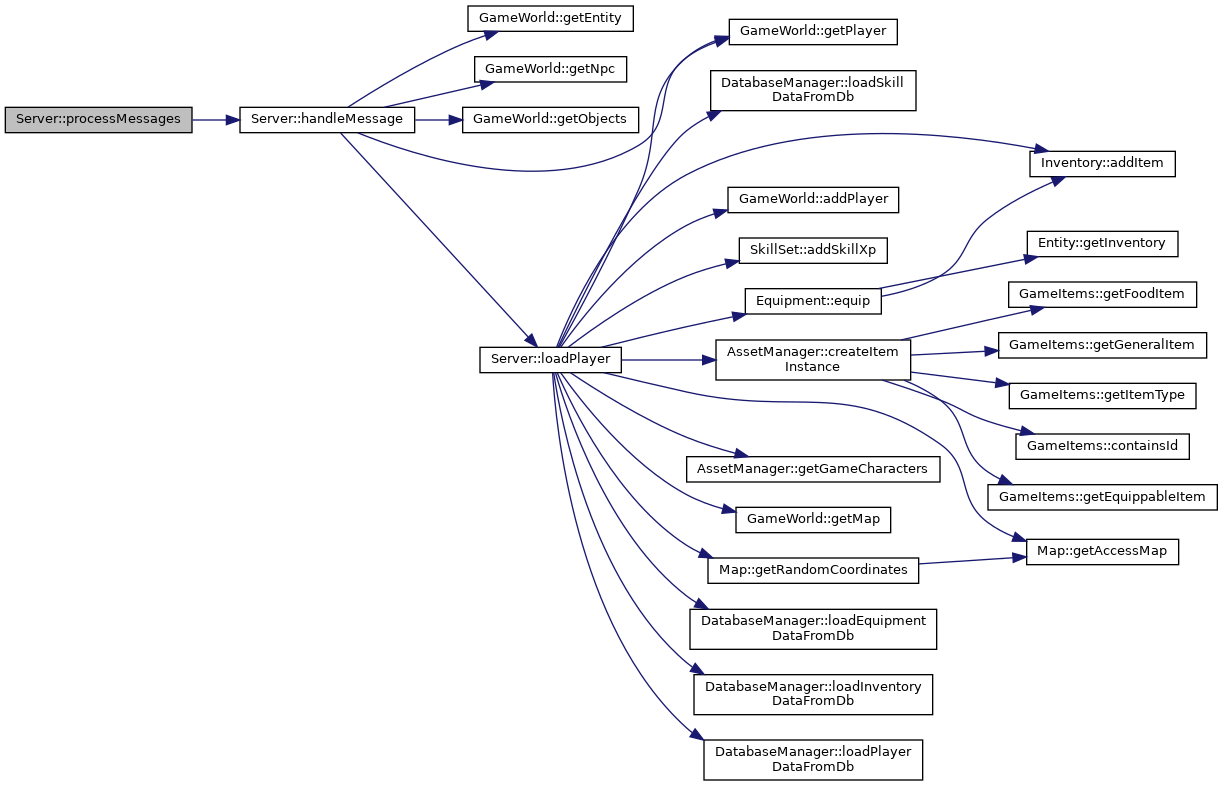

Here is the call graph for this function:

Here is the caller graph for this function:

savePlayer()

void Server::savePlayer ( int  playerId )

private

Saves a player's data to the database.

Parameters

playerId

Here is the call graph for this function:

Here is the caller graph for this function:

sendGameState()

void Server::sendGameState ( )

private

Sends the current gamestate to connected clients.

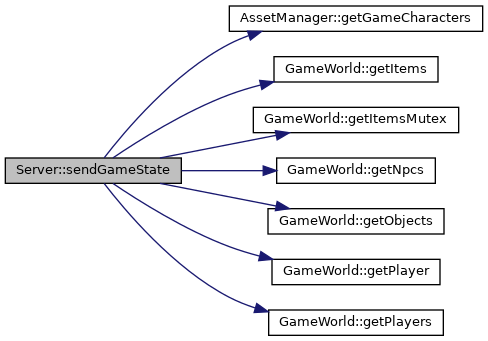

Here is the call graph for this function:

Here is the caller graph for this function:

tick()

void Server::tick ( )

private

Function that updates the gamestate on each server tick, called by ticker()

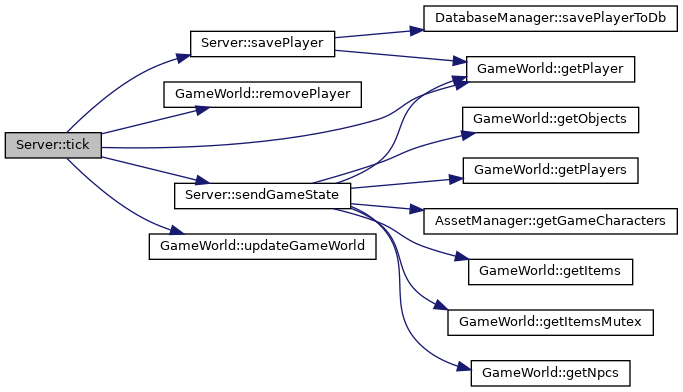

Here is the call graph for this function:

Here is the caller graph for this function:

ticker()

void Server::ticker ( )

private

Timer function that is used to start server ticks, runs on a separate thread.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

acceptorM

boost::asio::ip::tcp::acceptor Server::acceptorM

private

acceptThreadM

std::thread Server::acceptThreadM

private

connectionsM

std::vector<std::shared_ptr<Connection> > Server::connectionsM

private

dbManagerM

DatabaseManager Server::dbManagerM

private

gameWorldM

GameWorld Server::gameWorldM

private

ioContextM

boost::asio::io_context Server::ioContextM

private

ioThreadM

std::thread Server::ioThreadM

private

messagesM

MessageQueue Server::messagesM

private

tickThreadM

std::thread Server::tickThreadM

private

workGuardM

boost::asio::executor_work_guard<boost::asio::io_context::executor_type> Server::workGuardM

private

---

The documentation for this class was generated from the following files:

• Server.hpp
• Server.cpp
