MoveAction Class Reference

Action used for moving. More...

#include <MoveAction.hpp>

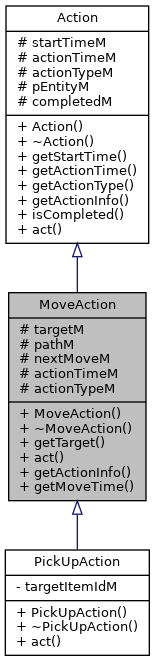

Inheritance diagram for MoveAction:

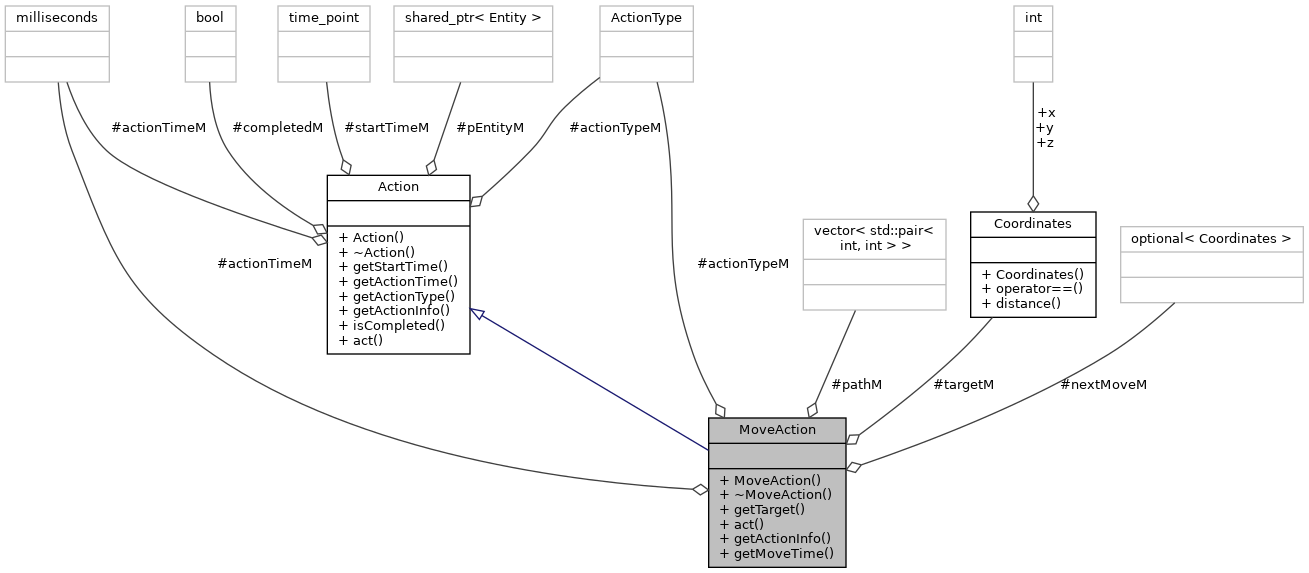

Collaboration diagram for MoveAction:

Public Member Functions
	MoveAction (std::chrono::system_clock::time_point startTime, Coordinates target, std::shared_ptr< Entity > pEntity)
	~MoveAction ()=default
Coordinates	getTarget ()
	Returns the target location of the action. More...
virtual void	act ()
	Movement functionality, which finds the shortest path to target location and performs the movement there. Implementation of pure virtual method act() of the base class. More...
CurrentAction	getActionInfo ()
	Returns information about the current action. More...
Public Member Functions inherited from Action
	Action (std::chrono::system_clock::time_point startTime, std::shared_ptr< Entity > pEntity)
	~Action ()=default
std::chrono::system_clock::time_point	getStartTime ()
	Get the time when the action started. More...
std::chrono::milliseconds	getActionTime ()
	Get the time how long a single iteration of the action takes. More...
ActionType	getActionType ()
	Get the ActionType object. More...
bool	isCompleted ()
	Returns true if the action is completed. More...

Static Public Member Functions
static const std::chrono::milliseconds	getMoveTime ()
	Get the Move Time object. More...

Protected Attributes
Coordinates	targetM
std::vector< std::pair< int, int > >	pathM
std::optional< Coordinates >	nextMoveM
	Next move to be taken. Stores the first element of pathM, after its deleted. Ww need this to be able to tell the client where we are moving next. More...
std::chrono::milliseconds	actionTimeM
ActionType	actionTypeM = ActionType::Move
Protected Attributes inherited from Action
std::chrono::system_clock::time_point	startTimeM
std::chrono::milliseconds	actionTimeM = std::chrono::milliseconds(0)
ActionType	actionTypeM = ActionType::None
std::shared_ptr< Entity >	pEntityM
bool	completedM = false

Detailed Description

Action used for moving.

Constructor & Destructor Documentation

MoveAction()

MoveAction::MoveAction	(	std::chrono::system_clock::time_point	startTime,
		Coordinates	target,
		std::shared_ptr< Entity >	pEntity
	)

~MoveAction()

MoveAction::~MoveAction ( )

default

Member Function Documentation

act()

void MoveAction::act ( )

virtual

Movement functionality, which finds the shortest path to target location and performs the movement there. Implementation of pure virtual method act() of the base class.

Implements Action.

Reimplemented in PickUpAction.

getActionInfo()

CurrentAction MoveAction::getActionInfo ( )

virtual

Returns information about the current action.

Returns

CurrentAction

Reimplemented from Action.

getMoveTime()

static const std::chrono::milliseconds MoveAction::getMoveTime ( )

static

Get the Move Time object.

Returns

const std::chrono::milliseconds

getTarget()

Coordinates MoveAction::getTarget

(

)

Returns the target location of the action.

Returns

Coordinates

Member Data Documentation

actionTimeM

std::chrono::milliseconds MoveAction::actionTimeM

protected

actionTypeM

ActionType MoveAction::actionTypeM = ActionType::Move

protected

nextMoveM

std::optional<Coordinates> MoveAction::nextMoveM

protected

Next move to be taken. Stores the first element of pathM, after its deleted. Ww need this to be able to tell the client where we are moving next.

pathM

std::vector<std::pair<int, int> > MoveAction::pathM

protected

targetM

Coordinates MoveAction::targetM

protected

---

The documentation for this class was generated from the following files:

• MoveAction.hpp
• MoveAction.cpp
