Map Class Reference

Static class representing the map of the game world. Map contains information about which tiles are accessible and which are not. It also contains information about the height of the tiles. It does not contain any information about the entities in the world. For that refer to GameWorld. More...

#include <Map.hpp>

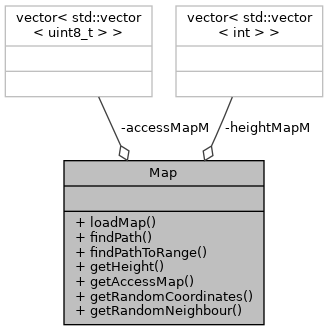

Collaboration diagram for Map:

Static Public Member Functions
static void	loadMap ()
	Loads the map information from generated assets. Currently loads the access map and height map information. More...
static std::vector< std::pair< int, int > >	findPath (Coordinates start, Coordinates end)
	Finds a path from start to end. More...
static std::vector< std::pair< int, int > >	findPathToRange (Coordinates start, Coordinates end, int range)
	Finds a path to some locations range. Can be used, for example, if the attack target is not in range, we can find a path to a location that is in range. More...
static std::optional< int >	getHeight (int x, int y)
	Gives the height for the given (x, y) coordinates. More...
static const std::vector< std::vector< uint8_t > > &	getAccessMap ()
	Get the access map. More...
static Coordinates	getRandomCoordinates (const SpawnCoordinateBounds &coordinateBounds)
	Gets a random coordinate within the given bounds. More...
static Coordinates	getRandomNeighbour (Coordinates coordinates, const SpawnCoordinateBounds &coordinateBounds)
	Gets a random neighbour of the given coordinates. More...

Static Private Attributes
static std::vector< std::vector< uint8_t > >	accessMapM = {}
static std::vector< std::vector< int > >	heightMapM = {}

Detailed Description

Static class representing the map of the game world. Map contains information about which tiles are accessible and which are not. It also contains information about the height of the tiles. It does not contain any information about the entities in the world. For that refer to GameWorld.

Member Function Documentation

findPath()

std::vector< std::pair< int, int > > Map::findPath ( Coordinates  start, Coordinates  end  )

static

Finds a path from start to end.

Parameters

start	Starting coordinates
end	Ending coordinates

Returns

Vector of coordinates (x,y) that form the path. Empty vector if no path found.

Here is the call graph for this function:

Here is the caller graph for this function:

findPathToRange()

std::vector< std::pair< int, int > > Map::findPathToRange ( Coordinates  start, Coordinates  end, int  range  )

static

Finds a path to some locations range. Can be used, for example, if the attack target is not in range, we can find a path to a location that is in range.

Parameters

start	Starting coordinates
end	Ending coordinates
range	Range in tiles

Returns

Vector of coordinates (x,y) that form the path. Empty vector if no path found.

Here is the call graph for this function:

Here is the caller graph for this function:

getAccessMap()

const std::vector< std::vector< uint8_t > > & Map::getAccessMap ( )

static

Get the access map.

Returns

access map

Here is the caller graph for this function:

getHeight()

std::optional< int > Map::getHeight ( int  x, int  y  )

static

Gives the height for the given (x, y) coordinates.

Parameters

x	X-coordinate
y	Y-coordinate

Returns

Height of the given coordinates wrapped in optional.

Here is the caller graph for this function:

getRandomCoordinates()

Coordinates Map::getRandomCoordinates ( const SpawnCoordinateBounds &  coordinateBounds )

static

Gets a random coordinate within the given bounds.

Parameters

coordinateBounds

Returns

Coordinates

Here is the call graph for this function:

Here is the caller graph for this function:

getRandomNeighbour()

Coordinates Map::getRandomNeighbour ( Coordinates  coordinates, const SpawnCoordinateBounds &  coordinateBounds  )

static

Gets a random neighbour of the given coordinates.

Parameters

coordinates
coordinateBounds	Bounds for the coordinates

Returns

Coordinates (Returns the given coordinates if no neighbours found/accessible)

Here is the call graph for this function:

Here is the caller graph for this function:

loadMap()

void Map::loadMap ( )

static

Loads the map information from generated assets. Currently loads the access map and height map information.

Note

Call this before using any other methods of this class.

Returns

Nothing

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

accessMapM

std::vector<std::vector<uint8_t> > Map::accessMapM = {}

inlinestaticprivate

heightMapM

std::vector<std::vector<int> > Map::heightMapM = {}

inlinestaticprivate

---

The documentation for this class was generated from the following files:

• Map.hpp
• Map.cpp
