DescriptorBuilder Class Reference

DescriptorBuilder uses PoolManager and DescriptorLayoutCache to manage and create descriptor sets. More...

#include <DescriptorBuilder.hpp>

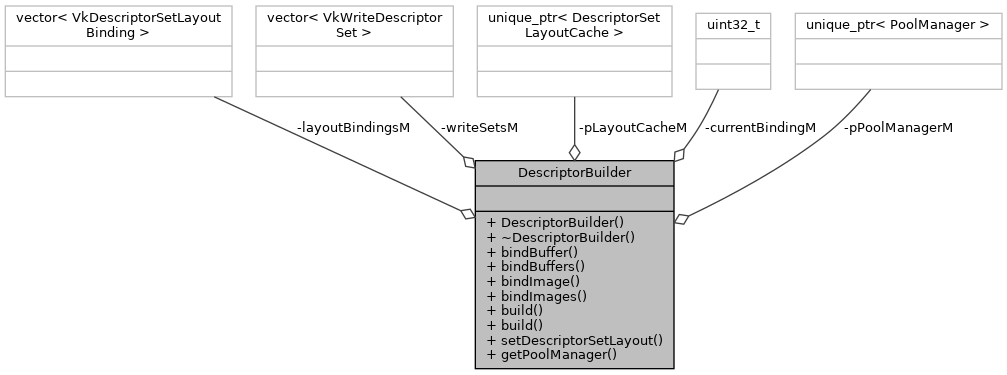

Collaboration diagram for DescriptorBuilder:

Public Member Functions
	DescriptorBuilder (PoolManager &poolManager, DescriptorSetLayoutCache &cache)
	~DescriptorBuilder ()
DescriptorBuilder &	bindBuffer (VkDescriptorBufferInfo &bufferInfo, VkDescriptorType type, VkShaderStageFlags stageFlags)
	Creates a descriptor set layout binding and a write descriptor set for a buffer. More...
DescriptorBuilder &	bindBuffers (const VkDescriptorBufferInfo *bufferInfos, VkDescriptorType type, VkShaderStageFlags stageFlags, uint32_t count)
	Creates a descriptor set layout binding and a write descriptor set for multiple buffers. More...
DescriptorBuilder &	bindImage (VkDescriptorImageInfo &imageInfo, VkDescriptorType type, VkShaderStageFlags stageFlags)
	Creates a descriptor set layout binding and a write descriptor set for an image. More...
DescriptorBuilder &	bindImages (const VkDescriptorImageInfo *imageInfos, VkDescriptorType type, VkShaderStageFlags stageFlags, uint32_t count)
	Binds multiple images to the descriptor set as an array. More...
bool	build (VkDescriptorSet &set, VkDescriptorSetLayout &layout)
	Builds a descriptor set and sets a created layout to the supplied parameter. Also updates the descriptor sets. More...
bool	build (VkDescriptorSet &set)
	Builds a descriptor set. More...
void	setDescriptorSetLayout (const VkDescriptorSetLayoutBinding *bindings, uint32_t bindingCount, VkDescriptorSetLayout &layout)
	Sets a layout to the supplied parameter from the given bindings. More...
const PoolManager &	getPoolManager () const

Private Attributes
uint32_t	currentBindingM
std::vector< VkWriteDescriptorSet >	writeSetsM
std::vector< VkDescriptorSetLayoutBinding >	layoutBindingsM
std::unique_ptr< PoolManager >	pPoolManagerM
std::unique_ptr< DescriptorSetLayoutCache >	pLayoutCacheM

Detailed Description

DescriptorBuilder uses PoolManager and DescriptorLayoutCache to manage and create descriptor sets.

Constructor & Destructor Documentation

DescriptorBuilder()

DescriptorBuilder::DescriptorBuilder	(	PoolManager &	poolManager,
		DescriptorSetLayoutCache &	cache
	)

~DescriptorBuilder()

DescriptorBuilder::~DescriptorBuilder

(

)

Member Function Documentation

bindBuffer()

DescriptorBuilder & DescriptorBuilder::bindBuffer	(	VkDescriptorBufferInfo &	bufferInfo,
		VkDescriptorType	type,
		VkShaderStageFlags	stageFlags
	)

Creates a descriptor set layout binding and a write descriptor set for a buffer.

Parameters

bufferInfo	struct decribing the buffer data.
type	of descriptor
stageFlags	Descriptor stage

Returns

The builder itself.

bindBuffers()

DescriptorBuilder & DescriptorBuilder::bindBuffers	(	const VkDescriptorBufferInfo *	bufferInfos,
		VkDescriptorType	type,
		VkShaderStageFlags	stageFlags,
		uint32_t	count
	)

Creates a descriptor set layout binding and a write descriptor set for multiple buffers.

Parameters

bufferInfos	is a pointer to the list of buffer info structs.
type	is the type of resource.
stageFlags	is the shader stage.
count	is the number of elements in the bufferInfos array.

Returns

The builder itself

bindImage()

DescriptorBuilder & DescriptorBuilder::bindImage	(	VkDescriptorImageInfo &	imageInfo,
		VkDescriptorType	type,
		VkShaderStageFlags	stageFlags
	)

Creates a descriptor set layout binding and a write descriptor set for an image.

Parameters

imageInfo	struct decribing the image data.
type	of descriptor.
stageFlags	Descriptor stage.

Returns

The builder itself.

bindImages()

DescriptorBuilder & DescriptorBuilder::bindImages	(	const VkDescriptorImageInfo *	imageInfos,
		VkDescriptorType	type,
		VkShaderStageFlags	stageFlags,
		uint32_t	count
	)

Binds multiple images to the descriptor set as an array.

Parameters

imageInfos	is an array of image info structs.
type	of resource.
stageFlags	is the shader stage.
count	is the number of images to bind. Must match what is in the imageInfos array.

Returns

the builder itself.

build() [1/2]

bool DescriptorBuilder::build

(

VkDescriptorSet &

set

)

Builds a descriptor set.

Parameters

set	set to be built

Returns

Boolean indicating operation status

Here is the call graph for this function:

build() [2/2]

bool DescriptorBuilder::build	(	VkDescriptorSet &	set,
		VkDescriptorSetLayout &	layout
	)

Builds a descriptor set and sets a created layout to the supplied parameter. Also updates the descriptor sets.

Parameters

set	to be created.
layout	to be filled.

Returns

Boolean indicating operation status.

Here is the caller graph for this function:

getPoolManager()

const PoolManager & DescriptorBuilder::getPoolManager

(

)

const

setDescriptorSetLayout()

void DescriptorBuilder::setDescriptorSetLayout	(	const VkDescriptorSetLayoutBinding *	bindings,
		uint32_t	bindingCount,
		VkDescriptorSetLayout &	layout
	)

Sets a layout to the supplied parameter from the given bindings.

Parameters

layout	to be set
bindings	to be used

Member Data Documentation

currentBindingM

uint32_t DescriptorBuilder::currentBindingM

private

layoutBindingsM

std::vector<VkDescriptorSetLayoutBinding> DescriptorBuilder::layoutBindingsM

private

pLayoutCacheM

std::unique_ptr<DescriptorSetLayoutCache> DescriptorBuilder::pLayoutCacheM

private

pPoolManagerM

std::unique_ptr<PoolManager> DescriptorBuilder::pPoolManagerM

private

writeSetsM

std::vector<VkWriteDescriptorSet> DescriptorBuilder::writeSetsM

private

---

The documentation for this class was generated from the following files:

• DescriptorBuilder.hpp
• DescriptorBuilder.cpp
